WARWICK workholding Simple, Cheap and Reliable

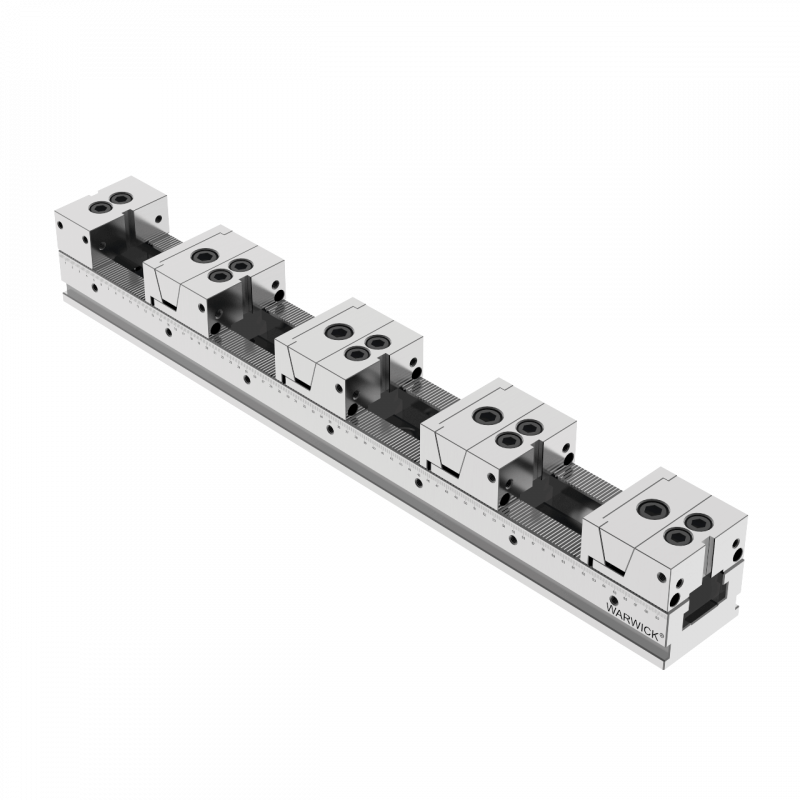

KSD88-700-4FD
Cost-effective -KSD Multi station clamping vises
Grinding process, surface hardening treatment,
Multi clamping vises are highly flexible, and they quickly and easily clamp several small or very large workpieces.
Applied to the SIMPLE-KSZ system, it will exhibit near-perfect exchange position accuracy.
Flexible adjustment range and high repeat position accuracy greatly reduce downtime and tool changes.
Product Information
Structural principle
Application
Accessories
Downloads
Product Information
| Description | ID | Rail width | Clamping force [kN] | Max. torque [N.m] | Weight [kg] |
| KSD88-700-FD | 21550-FD | 88 | 35.6 | 80 | 27.5 |
Drawing
| Notice: | – |
| Scope of delivery: | 1 x KSD88-700-FD |
| 1 x Wrench |
Structural principle
| 1.Hardened and ground serration |
| For maximum precision and form stability |
| 2.Clamping assembly |
| Optimal adjustment for new clamping tasks |
| 3.Fixed jaw can be turned 180° |
| High degree of flexibility |
| 4.High-strength clamping rails |
| Ensure the best production results |
| 5.SIMPLE-KSZ interface |
| Can be adapted to all SIMPLE-KSZ clamping stations |
| 6.Laser-etched ruler |
| For quick chuck jaw positioning |
Application
Clamping Capacity
The clamping range shows the max.
The maximum size of the workpiece that can be clamped-depends on the length of the guide rail and the number of clamping areas.
| Description | Number of workpieces clamped | |||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||
| KSD88-400 | Maximum workpiece clamping size [mm] | 267 | 92 | 33 | ||||||
| KSD88-500 | 367 | 142 | 67 | 29 | ||||||
| KSD88-600 | 467 | 192 | 100 | 54 | 27 | |||||
| KSD88-650 | 517 | 217 | 117 | 67 | 37 | 17 | ||||
| KSD88-700 | 567 | 242 | 133 | 79 | 47 | 25 | 10 | |||
 |
According to the processing needs, the number of clamped products can be flexibly adjusted. |  |
 |
After installing the soft jaw, precision machining of special-shaped workpieces can be carried out |  |
 |
With KSZ series zero point positioning interface |  |
Accessories
 |  |  |
| 88-FD | 88-FDT | 88-MD |
 |  |  |
| 88-MD | 88-GD | 88-GDT |
| |  |
| 88-RZ | 88-RZ-V | 88-RZ-H |
 |  | |
| 88-DP | 88-DW |
