WARWICK Workholding- Simple,Affordable and Reliable

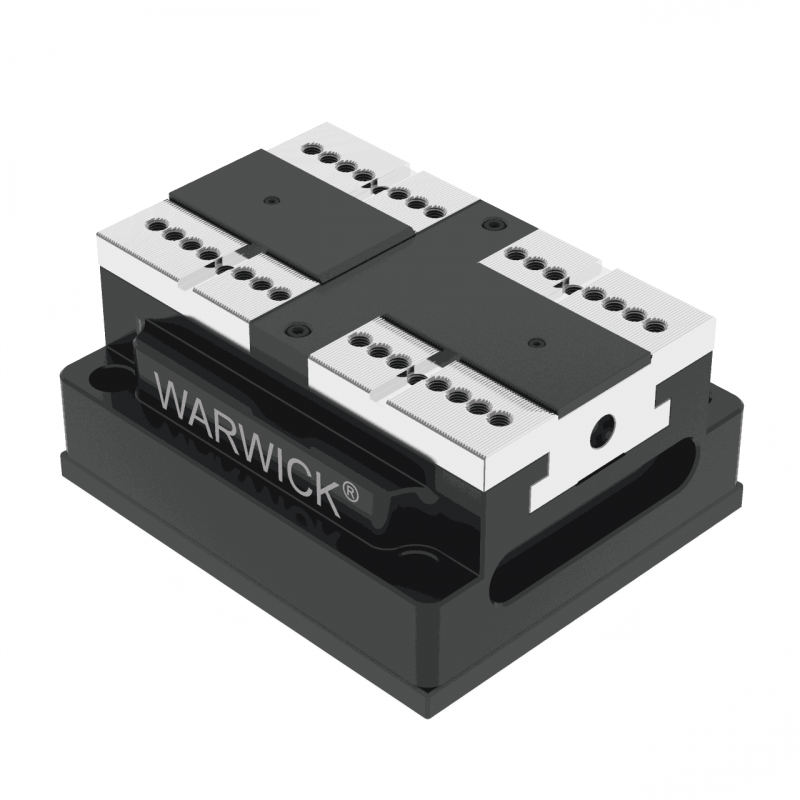

KSP-150
Reliable
Ultra-high clamping accuracy≤0.02mm (no less than 100 uninterrupted tests)
Spring clamping force is maintained when the air supply is disconnect
The vise has a special drive mechanism, so that the clamped workpiece does not.
The jaws are modular in design and feature a special WARWICK interface that allows for the installation of both hard and soft jaws. Unleash the full potential of your vise.
In order to protect the safety of the operator, we limit the stroke of the vise to 10mm.
Product Information
Structural principle
Application
Accessories
Downloads
Product Information

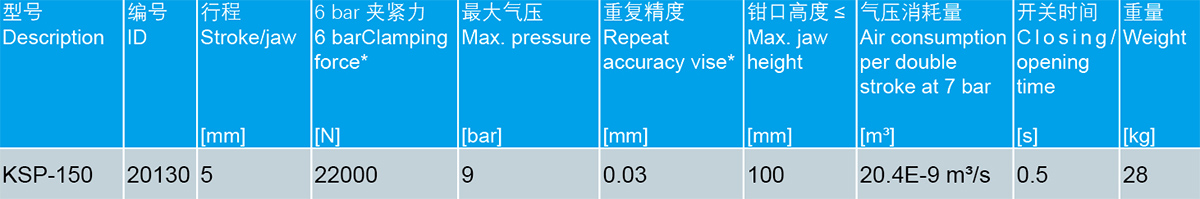

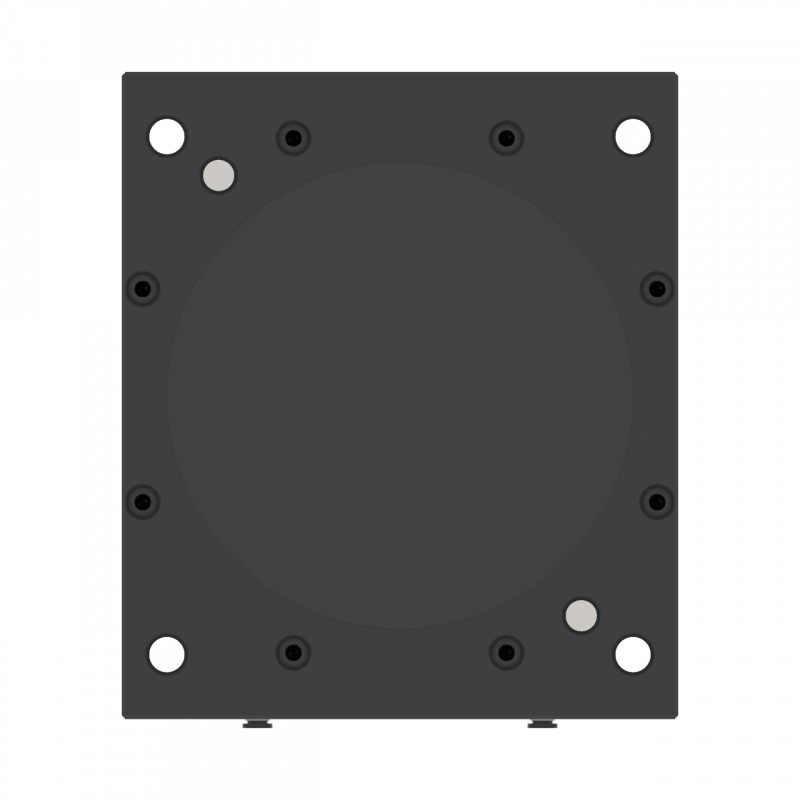

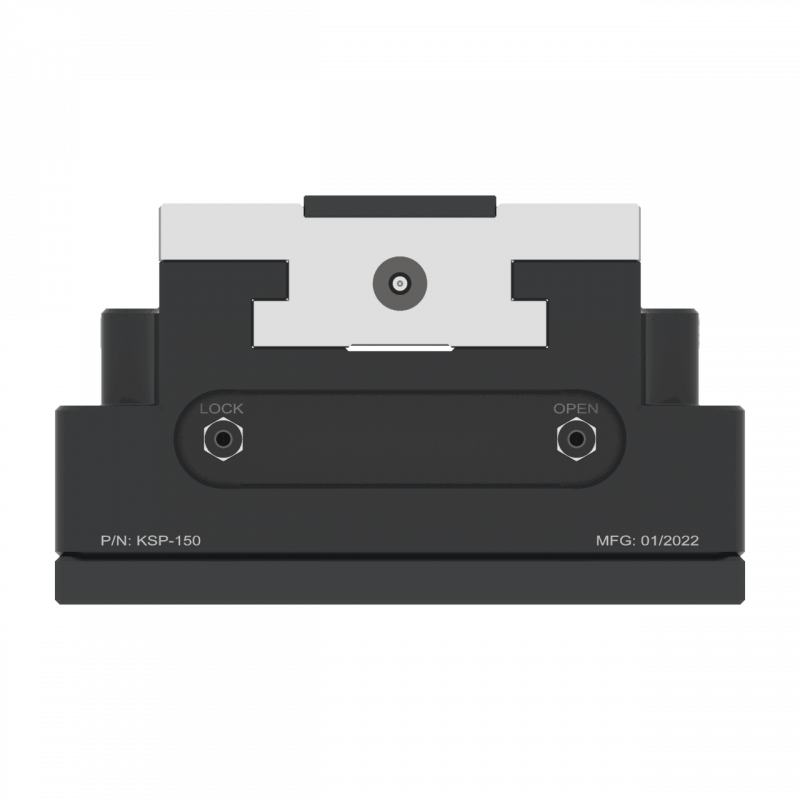

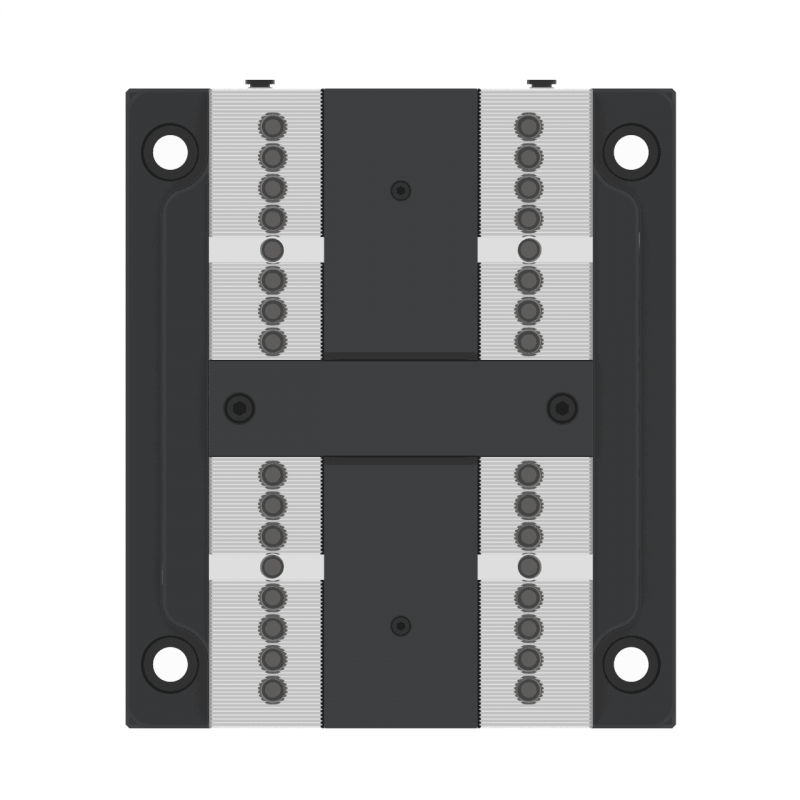

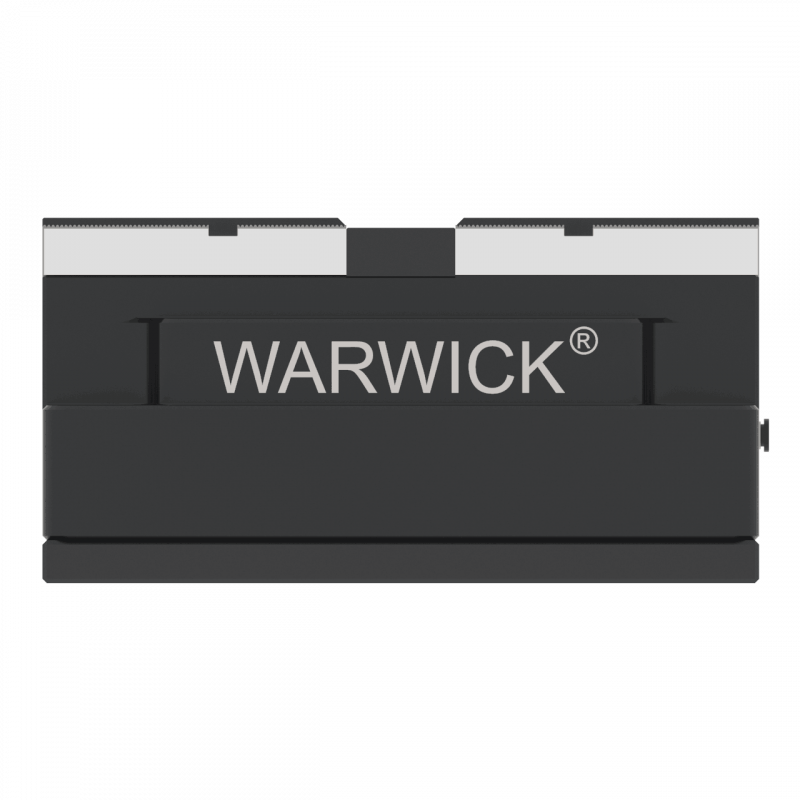

Drawing
| Notice: | – |
| Scope of delivery: | 1 x KSP-150 |
| 1 x RZ-150A | |
| 8 x Screw：M10*22 |
Structural principle
| 1.Wedge hook drive |
| Offers constantly high clamping forces in operation |
| 2.Hardened and extremely rigid base body |
| Therefore a longer life span at highest precision. Even with maximum clamping force |
| 3.Optimized lubrication system |
| For maximum efficiency |
| 4.Long jaw guidance |
| Offers optimal support for O.D. and I.D. clamping |
| 5.Low height |
| Increases the workspace of your machine |
| 6.Improved design which is insensitive to dirt |
| By specific sealing |
| 7.Standard chuck jaw interface |
| For using standard WARWCIK top jaws |
| 8.Control of the clamping modules |
| From the side or bottom as desired |
Application
 |
In 2019, users gave us our first trial. Grinding is required. 160,000 uninterrupted operations were completed without any improvements. The cause of the failure is that the dust wears away the seals. Then we revamped the design and ushered in a new generation. |  |
 |
In 2020, we added dust seals. The exterior has been redesigned according to the internal structure. |  |
 |
In 2021, we optimized the lubrication system and added a high-pressure oil injection interface. The lubricating oil groove in the sliding position has also been improved. Monolithic T-groove grinding process. Dust-proof structure upgraded. Bottom air intake is possible for 5-axis CNC machining. |  |
